Boeing 777 Cabin Stress Management System Teardown Reveals the Hidden Guardian of Your Flight

Yearly, tens of millions of passengers board a Boeing 777 and settle into their seats because the aircraft gently climbs to cruising altitude. Even probably the most skilled flyers are unlikely to think about the tiny little field of electronics and sensors that work tirelessly to make the air contained in the aircraft secure to breathe.

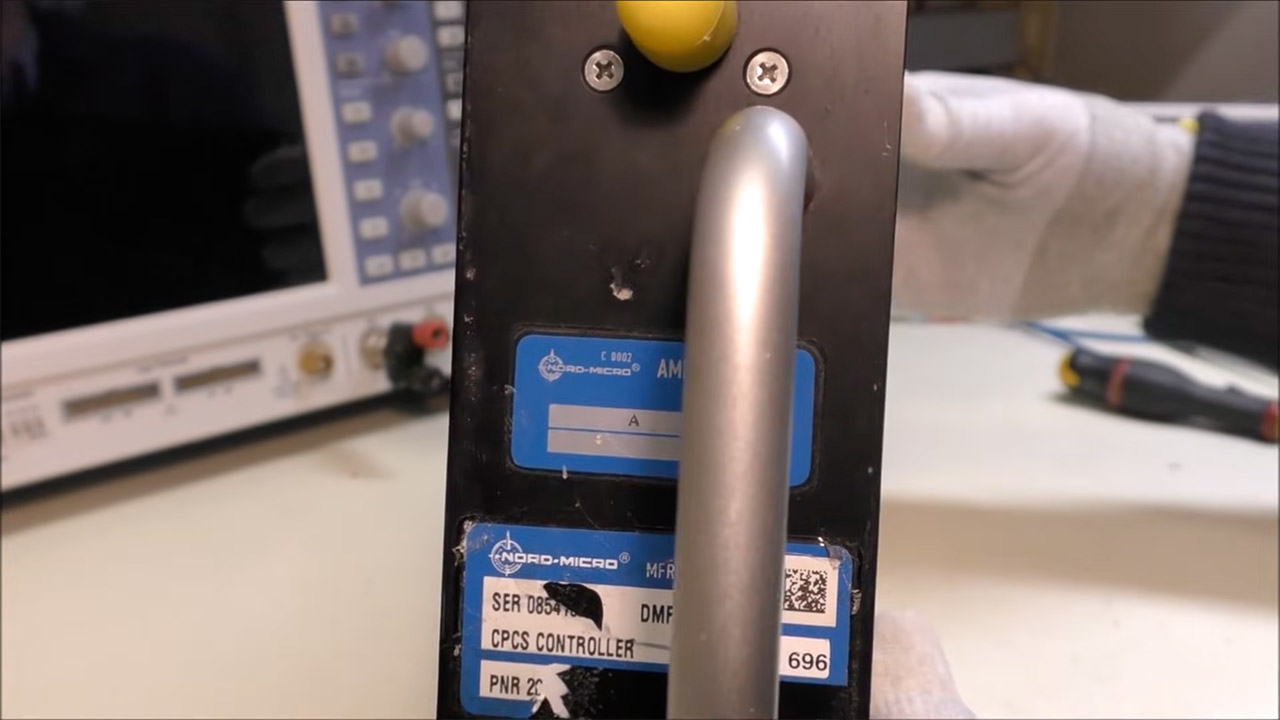

This gear, referred to as the Cabin Stress Management System controller, is the workhorse that maintains the right stress contained in the airplane fuselage. We get a wonderful peek inside one in all these machines courtesy to a teardown by an aviation fanatic named Michel, who demonstrates how all the system works.

Air enters the cabin by engine bleed programs as sizzling, pressurized air. It’s then cooled and conditioned by air packs earlier than being provided overhead to passengers. Nevertheless, with a purpose to preserve a continuing air stress throughout the aircraft, a few of the air should be launched, which is the place the large outflow valves are available in, one within the entrance and one within the again. The vast majority of the air will depart by the again valve, which is more practical in sustaining air circulation.

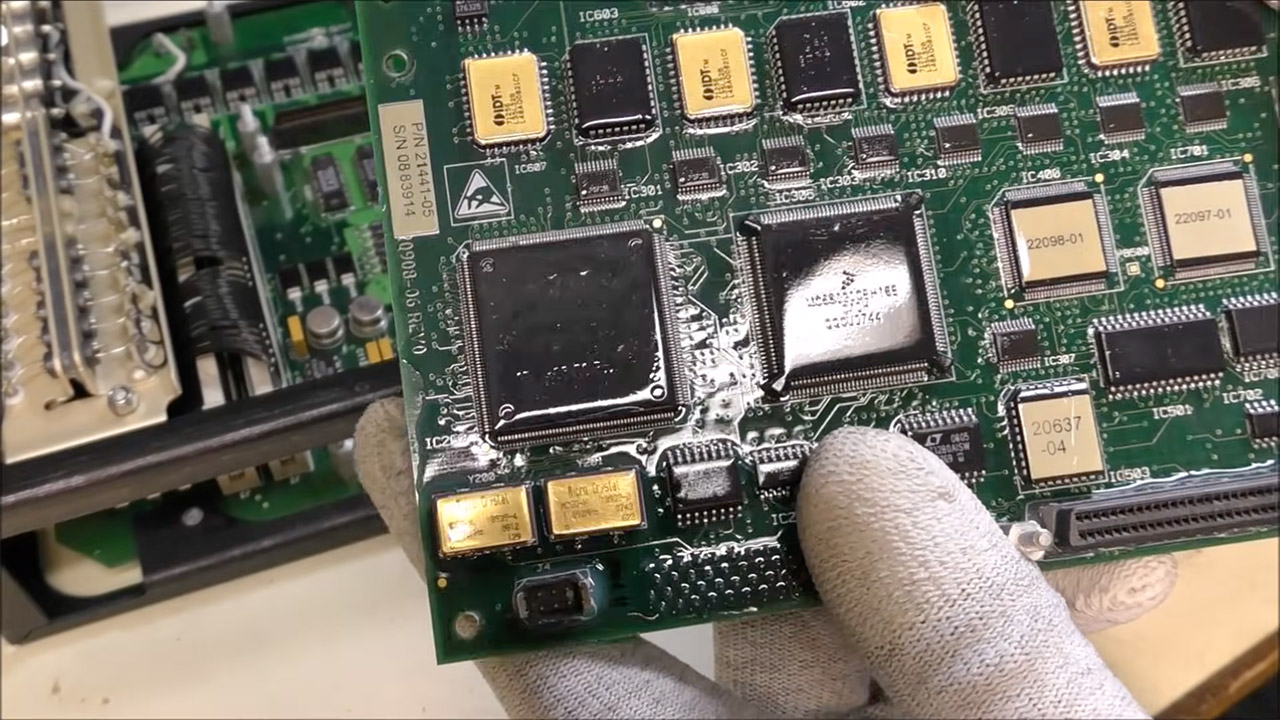

The controller operates the valves, making microscopic changes to keep up the perfect air stress. Each 777 consists of two backup programs, one in all which is the controller. That’s as a result of if one system fails, the opposite will take over, holding the air secure to breathe at excessive altitude. While you open the sturdy metallic container and peek inside, you’ll discover how dense the circuit boards are, and the way they’re all shielded from moisture and vibration by a singular coating. Moreover, the entire connectors are secured to forestall them from vibrating free.

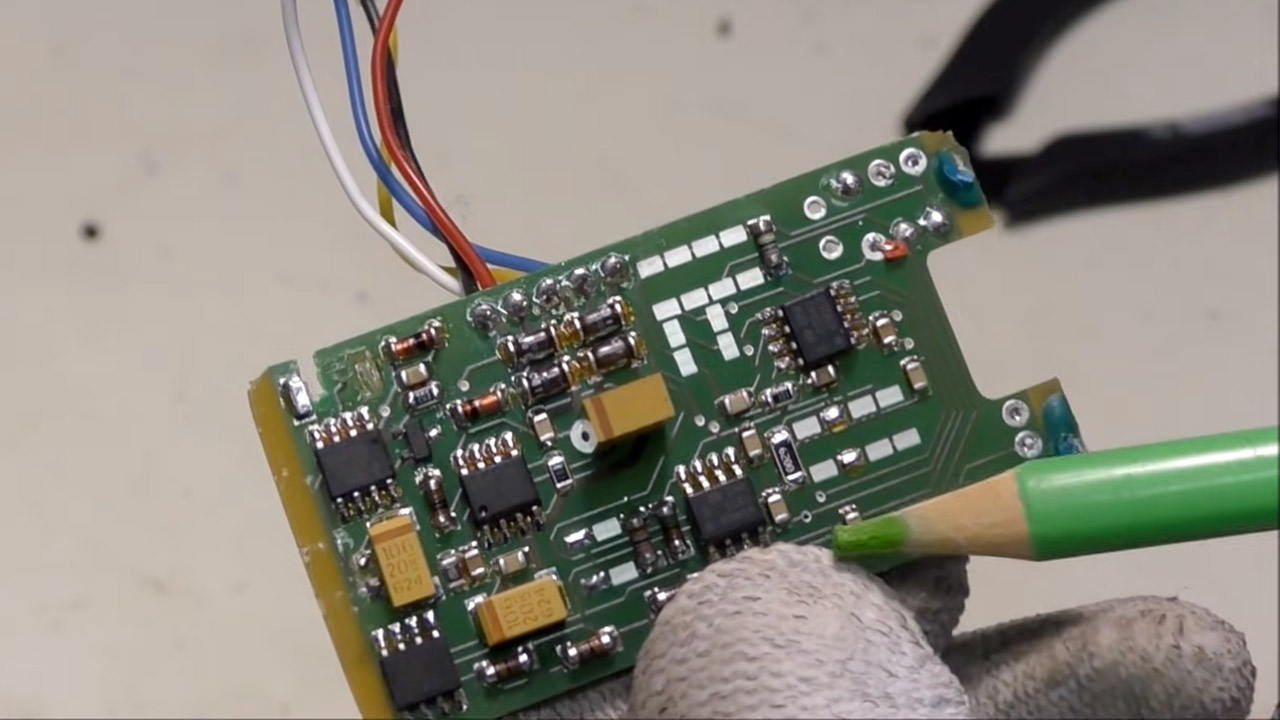

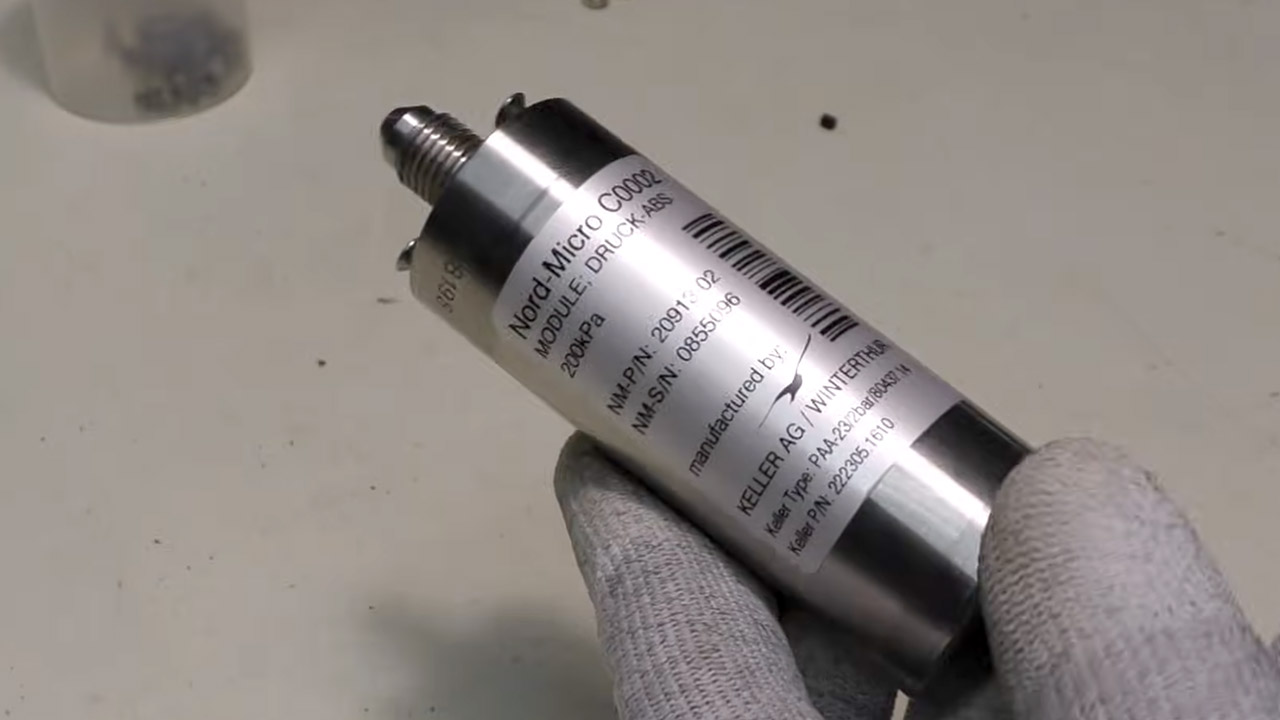

On the coronary heart of all of it are two small stress transducers manufactured by Nord-Micro. These are the gadgets that detect cabin air stress using a classy expertise referred to as piezoresistive. It operates by utilizing microscopic silicon components that modify their resistance to electrical energy because the stress on them varies.

One in all these transducers performs the first perform, whereas the opposite serves as a backup. What happens is that each ship indicators to a number of analog-to-digital converters, which convert the stress readings into digital knowledge that may subsequently be dealt with by these super-fast programmable gadgets referred to as FPGAs. These chips are extraordinarily quick and reliable at performing the logical duties required by the pc.

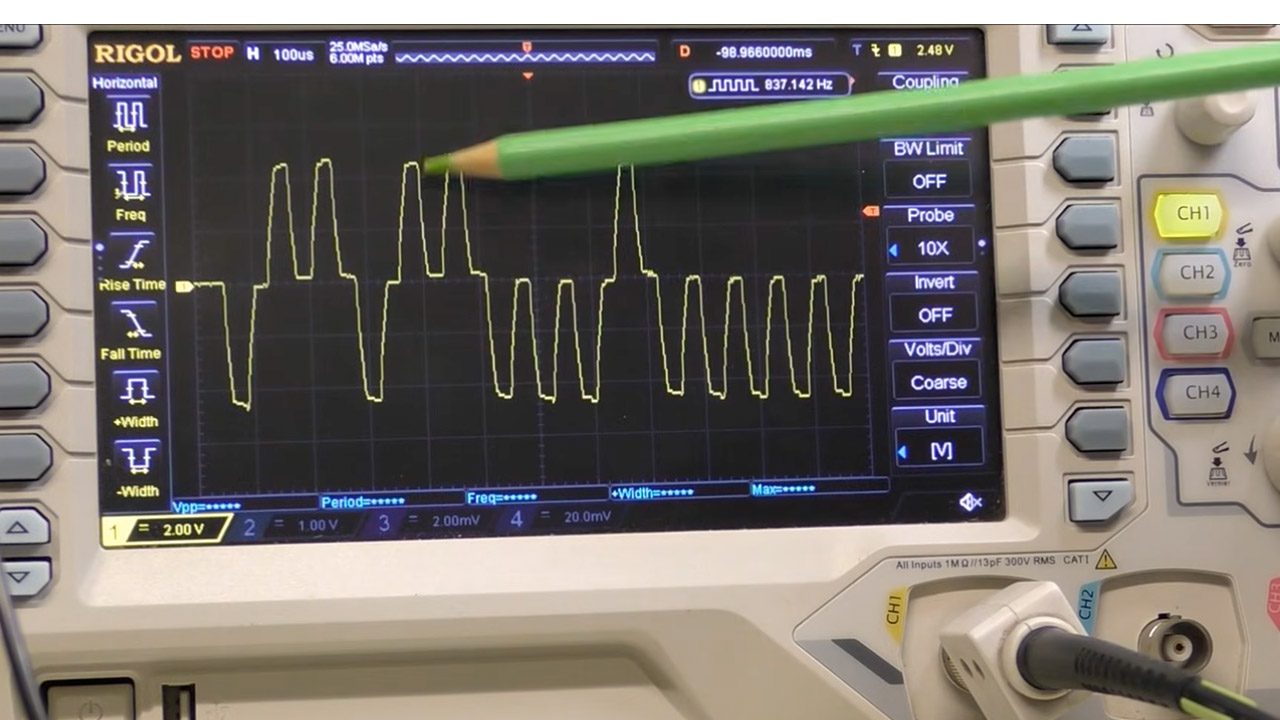

An ARINC 429 transceiver handles all communication between the controller and the remainder of the aircraft’s gear, delivering and receiving info akin to altitude in addition to vacation spot elevation. It’s all managed by software program, which employs a extremely specialised algorithm to exactly modify the valve areas. The way in which it really works is that when the aircraft ascends to greater altitudes, the stress throughout the cabin steadily decreases, at not more than 200 ft per minute equal. When the aircraft descends, the method reverses and the stress steadily rises once more. When the aircraft lands, the valves totally open, permitting recent air to enter.

One of the crucial good options is that the valves themselves have redundancy inbuilt, so even when one fails, the opposite can hold the stress as much as a secure degree. There are additionally security mechanisms that hold the air stress from rising too excessive, which might put pressure on the plane. Pneumatic actuators function the valves by blowing air into them, very like slightly balloon contained in the valve, to stability the interior and exterior air pressures.

Each element on this system is designed to resist the pains of flight, together with years of warmth, chilly, and turbulence, with out ever failing. The event course of was way more stringent than typical, with every line of code being scrutinized to make sure that it met the important requirements. There are even watchdog timers that carry out a reset if the system ever turns into caught.
