Customized-Constructed 96,000mAh Backpack Energy Station Prices All the things You Carry

Digital nomads regularly need to handle a bunch of units, together with laptops, telephones, tablets, routers, and infrequently drones or small robotics installations. The issue is that common energy banks simply don’t lower it when you may have many devices that require excessive energy on the similar time, or if you’re in the midst of nowhere and wish one thing reliable and versatile to maintain the whole lot operating. Luq1308 created the Omnibus 4×8 to deal with this precise situation. This tiny man packs 345 watt-hours of electrical energy in a package deal smaller than a sheet of A4 paper, permitting it to suit right into a backpack with out taking over an excessive amount of area.

The guts of this gadget is made up of 32 model new 18650 lithium-ion cells organized in a 4S8P association. Every of those batteries comprises 3,000mAh, so multiplying it by the conventional 3.6 volts yields a complete of roughly 96,000mAh or 345Wh. A 4S 30-amp battery administration system maintains the cells balanced, prevents overcharging and deep draining, and contains some further fuses for additional security. The unit’s low stand-by demand, lower than 400 microamps, means it sips energy whereas it’s simply sitting there, which is an effective factor if you’re on an extended journey and attempting to preserve energy.

The outputs are fairly adaptable, with 4 USB-C connectors pushing 36 watts every, which is sufficient to cost your telephone or pill concurrently. There may be additionally a bidirectional 100 watt USB-C port that may cost laptops quicker or settle for energy from a suitable supply. DC Jack outputs 2.7 to twenty volts, thus it’s very best for customized initiatives or gear that doesn’t use customary connectors, both regular voltage or present. For good measure, there’s a high-wattage XT60 connector able to dealing with a great deal of greater than 400W. The package deal additionally features a 150 watt AC outlet that, utilizing a modified inverter module, permits you to run small home equipment if you don’t have a wall connection.

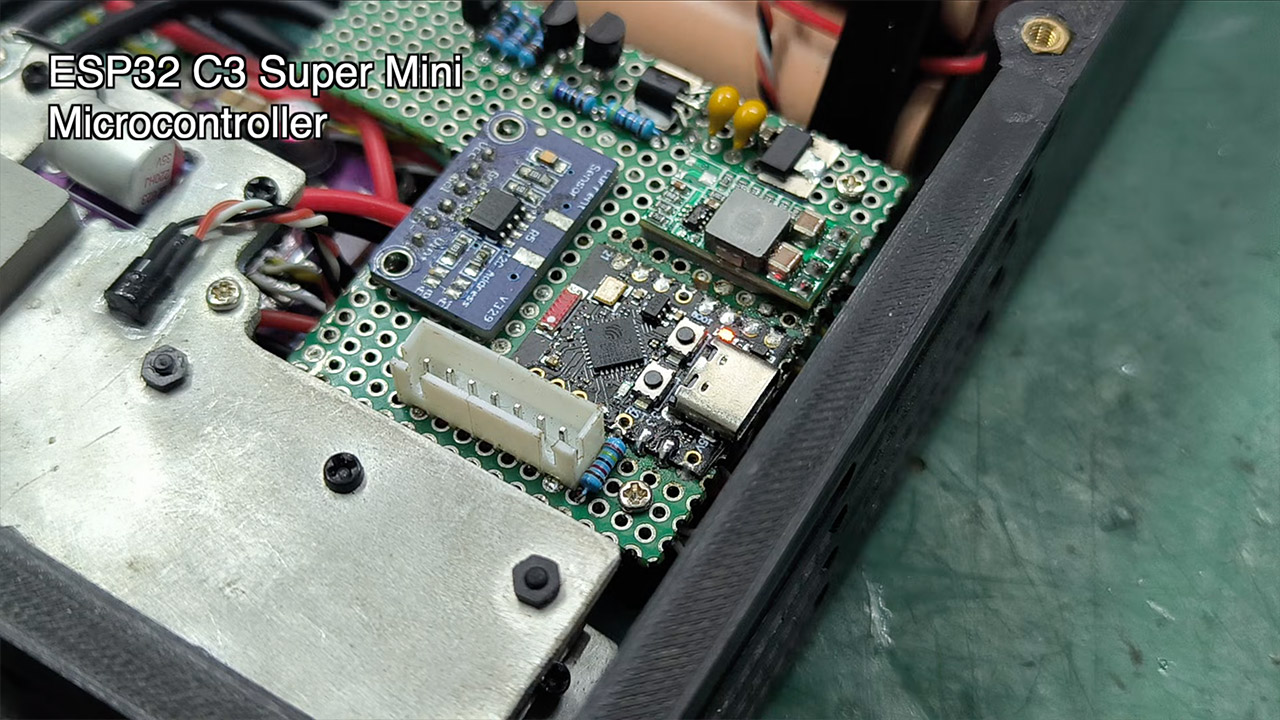

An ESP32-C3 microcontroller retains the whole lot collectively; it reads present ranges from an INA219 sensor, controls outputs, and powers a 1.3-inch OLED show with three navigation buttons. The display shows real-time standing, voltage, present, and temperature information, and customers can change modes or monitor telemetry utilizing easy menus. 4 DS18B20 sensors monitor temperatures on the battery pack, heatsinks, and inverter, triggering twin 40mm followers for lively cooling as wanted. For good measure, bespoke aluminum heatsinks with thermal pads stop the ability modules from overheating when pushed too exhausting.

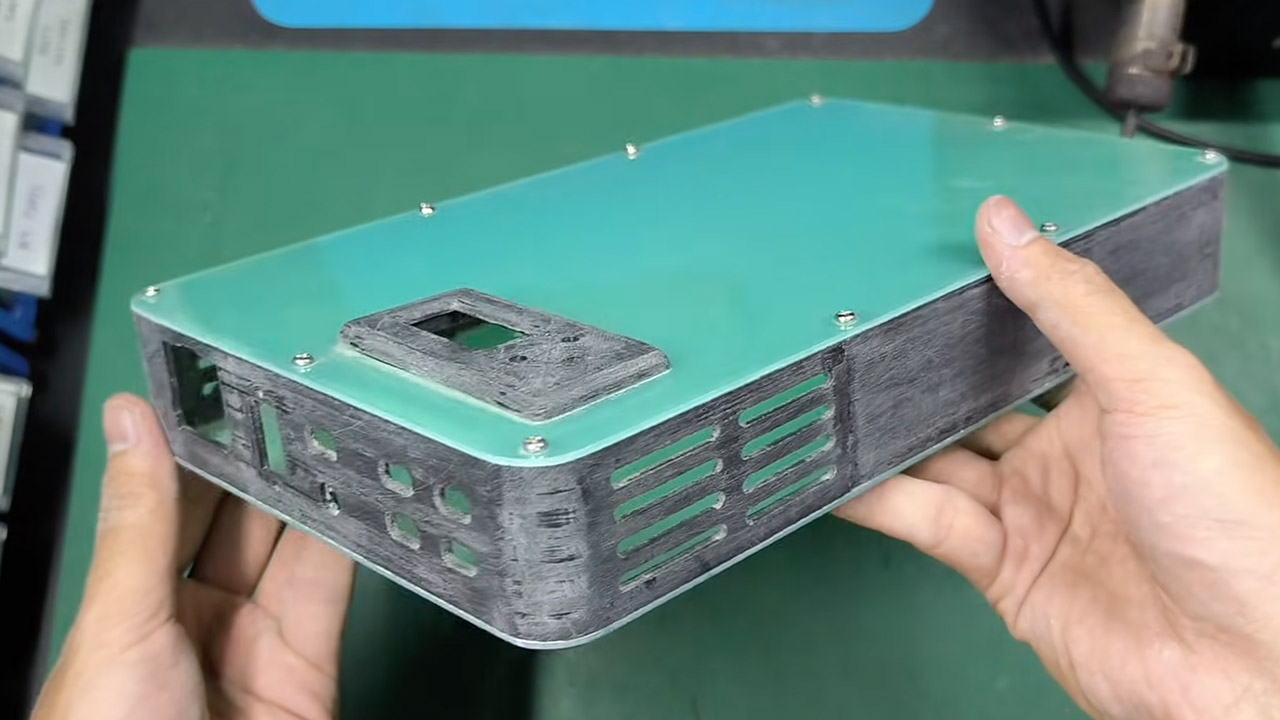

The enclosure consists of hand-cut G10 fiberglass plates for sturdiness and 3D printed ABS sides in matte black. Brass spacers and metallic mesh vents improve the tough look whereas but offering airflow and particles prevention. The battery modules simply sit inside, related along with 14 gauge silicone for minimal resistance. Energy distribution employs a perfboard bus with fuses, and modules such because the IP2368 for bidirectional USB-C, 4 XPM52C for typical USB-C, and the SC8812A for DC all discover a dwelling on these heatsinks.

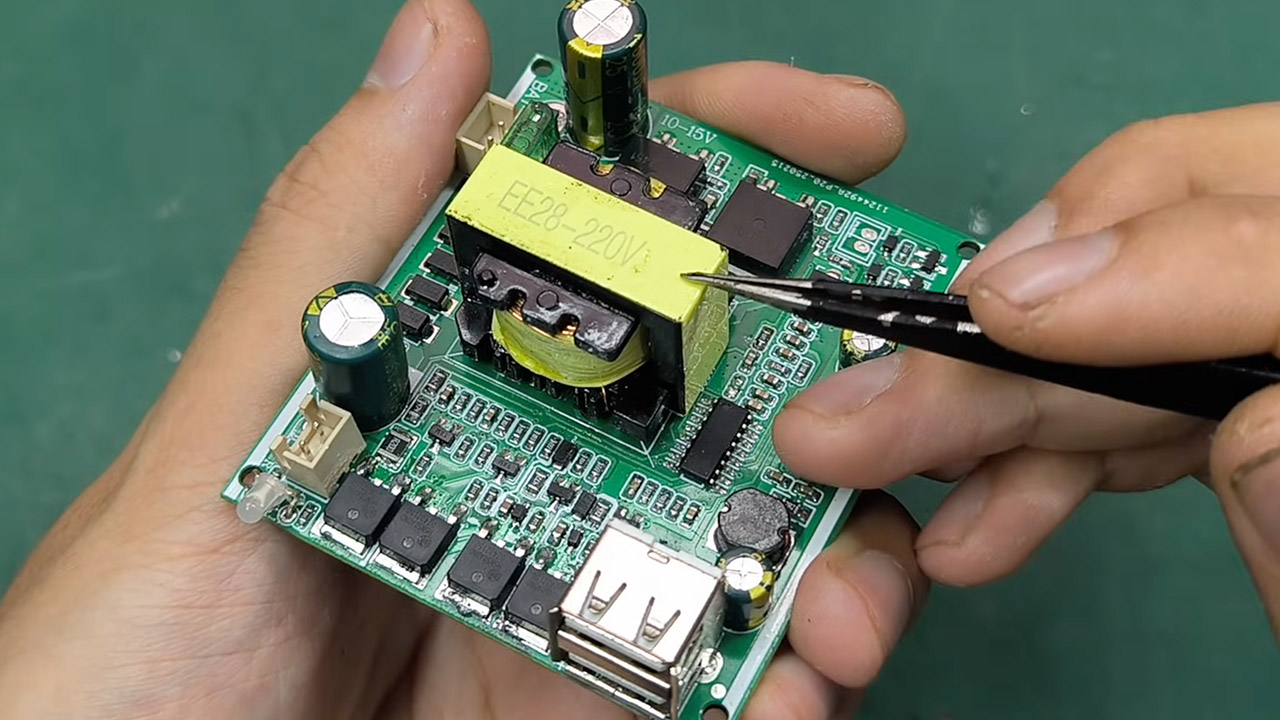

The inverter required a little bit of a hack to operate securely for the complete 4S voltage vary as much as 16.8 volts, so Luq1308 rewound the transformer main, altered the voltage divider, and related all of it to ESP32 management so chances are you’ll activate it on demand. This building stands out for its adaptability; bidirectional ports could settle for photo voltaic enter in MPPT mode, permitting for terribly environment friendly off-grid operation. The XT60 port allows heavy-duty connections. Oh, and the open-source recordsdata on GitHub make it easy for anybody else to repeat or modify the idea.
