Good Ring as a MIDI Controller? It Can Be Completed… If You’re Intelligent Sufficient

Floyd Steinberg noticed a cut price within the Colmi R02, a wise ring that discreetly tracks your on a regular basis well being information. That’s simply the tip of the iceberg, as this little system additionally incorporates a motion-sensing accelerometer, Bluetooth connectivity, a small battery, and a slew of sensors that observe your each day steps, sleep, in addition to coronary heart fee by way of a companion app.

Steinberg, nonetheless, noticed past that. He determined to get artistic and utterly repurpose the ring, reworking its motion-sensing capabilities right into a device for composing music, sure, actually. The Colmi R02 stands out as a result of, in a welcome departure from the usual for wearables, the maker prevented code signing and encryption. Anybody can create and add new firmware with out having to beat safety obstacles which might be sometimes in place. That groundwork was constructed by a earlier developer, Aaron Christophel (@atc1441), who was in a position to squeeze out a sooner firmware that enables for faster information transmission whereas retaining the ring absolutely appropriate with the unique utility. Steinberg then expanded upon that base.

First, let’s speak in regards to the ring itself. The Colmi R02 is available in plain packaging, with a magnetic charging wire, and suits properly in your finger. It has an accelerometer that detects motion in all three axes, that are X, Y, and Z. Nonetheless, out of the field, the firmware is sluggish and solely delivers information as soon as per second, which feels gradual for real-time music management. When correctly configured, the modified firmware considerably improves the pace with which the movement sensor gives updates.

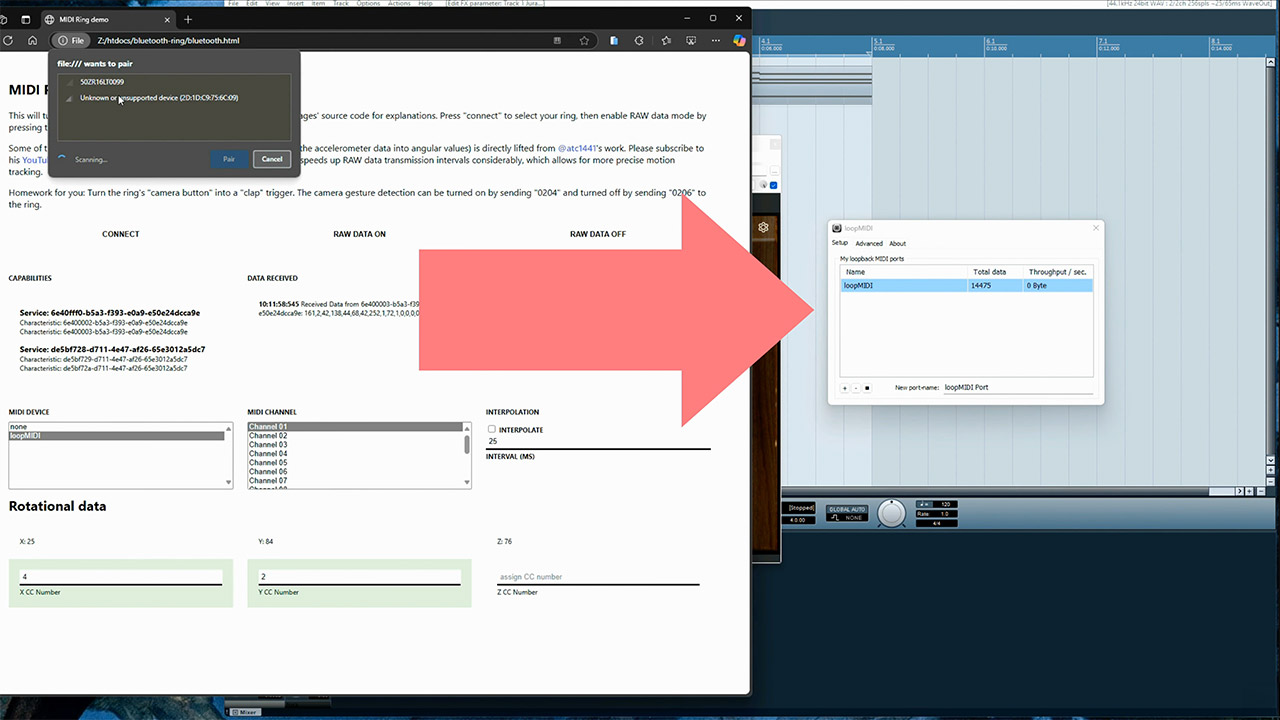

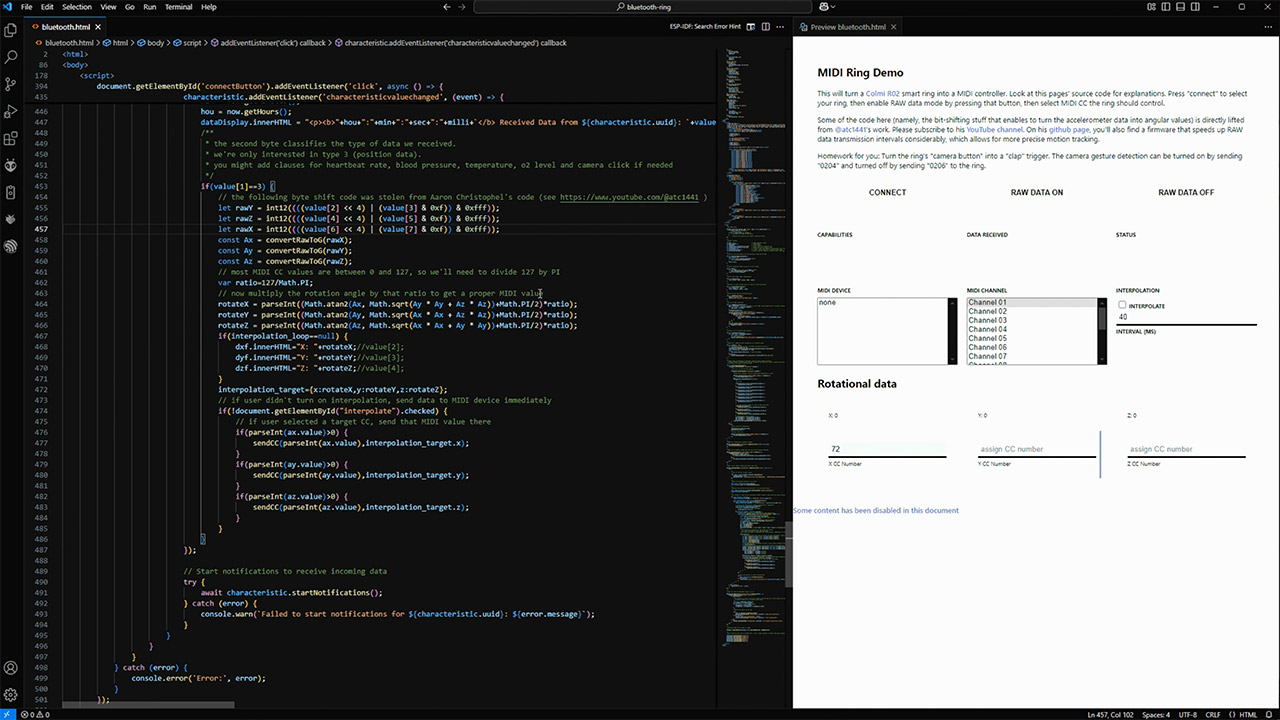

Subsequent, Steinberg connects the ring to a pc by way of Bluetooth and creates a customized internet utility in Javascript to deal with the connection utilizing the Net Bluetooth and WebMIDI APIs. The software program then requests permission and begins listening for incoming accelerometer readings, which arrive as uncooked X, Y, and Z information. These are then normalized to the suitable and traditional MIDI vary of 0 to 127. This permits customers to pick out which axis to map to which MIDI Management Change message, so tilting the hand on the Y-axis might modify the filter cutoff on a synth, whereas the X axis controls modulation depth or expression.

Then there’s the MIDI information, which flows from the browser right into a digital music workstation, reminiscent of Reaper, the place Steinberg routes the output by way of a digital MIDI connection like LoopMIDI. Within the DAW, a plugin reminiscent of Jura receives management change instructions and applies them to the parameters. What have you learnt, the consequence seems to be instant: a delicate palm tilt opens or closes a filter, offering a degree of expressiveness that feels utterly pure on the finger.

The setup is saved to a minimal as a result of there is no such thing as a additional {hardware} between the ring and the PC. The ring then works on its inside battery for hours as you get artistic, and charging happens by way of the magnetic wire, with the system being water-proof sufficient for use regularly. Steinberg even shocases this method getting used to manage an exterior synthesizer reminiscent of a Yamaha Montage by way of the pc bridge, with hand gestures substituting typical knobs or mod wheels, permitting the performer to maneuver freely whereas performing. If you wish to get entangled with this venture, the entire information, together with the online app code and references to the customized firmware, can be found on GitHub.
