Mini Marble Clock, Presumably the World’s Smallest, Quietly Assembles the Time With Metal Balls

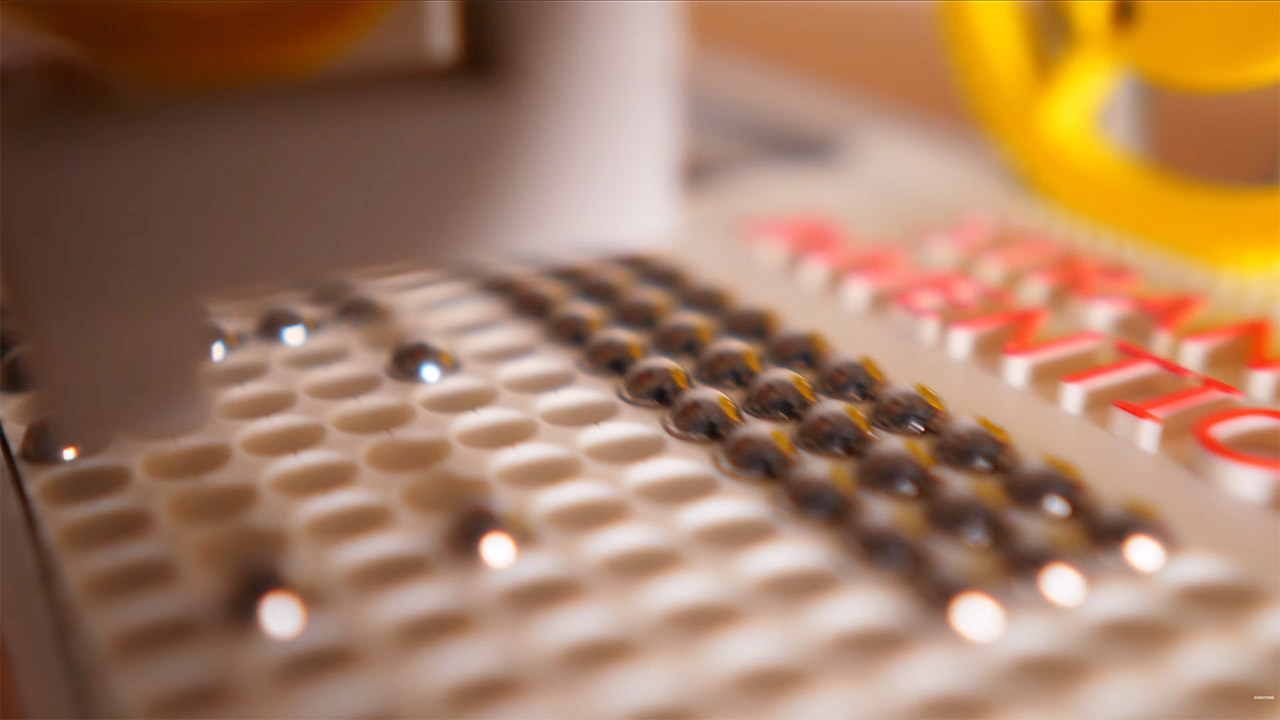

Jens’ workstation has a tiny marble clock that tells the time with out the necessity for giant rolling balls. As a substitute, a little bit arm reaches in, grabs the marble with a magnet, swings it round, and places it into place to create the numerals. Each minute or so, the mechanism causes a small stir to replace the show. The entire piece seems good on a desk and is a fraction of the dimensions of the massive marble clocks that impressed it.

Jens was impressed by Ivan Miranda’s gigantic marble shows, which present the time by permitting tons of of balls to maneuver by way of intricate pathways. These machines are clearly too giant for the standard room, as they require loads of space for the gravity-fed tracks, and the continuous clatter they produce is considerably annoying. Jens determined to flip that on its head. He designed it to be as tiny as doable, saved to a $23 finances, and eradicated nearly all of the noise by changing all the rolling with good outdated strategic placement.

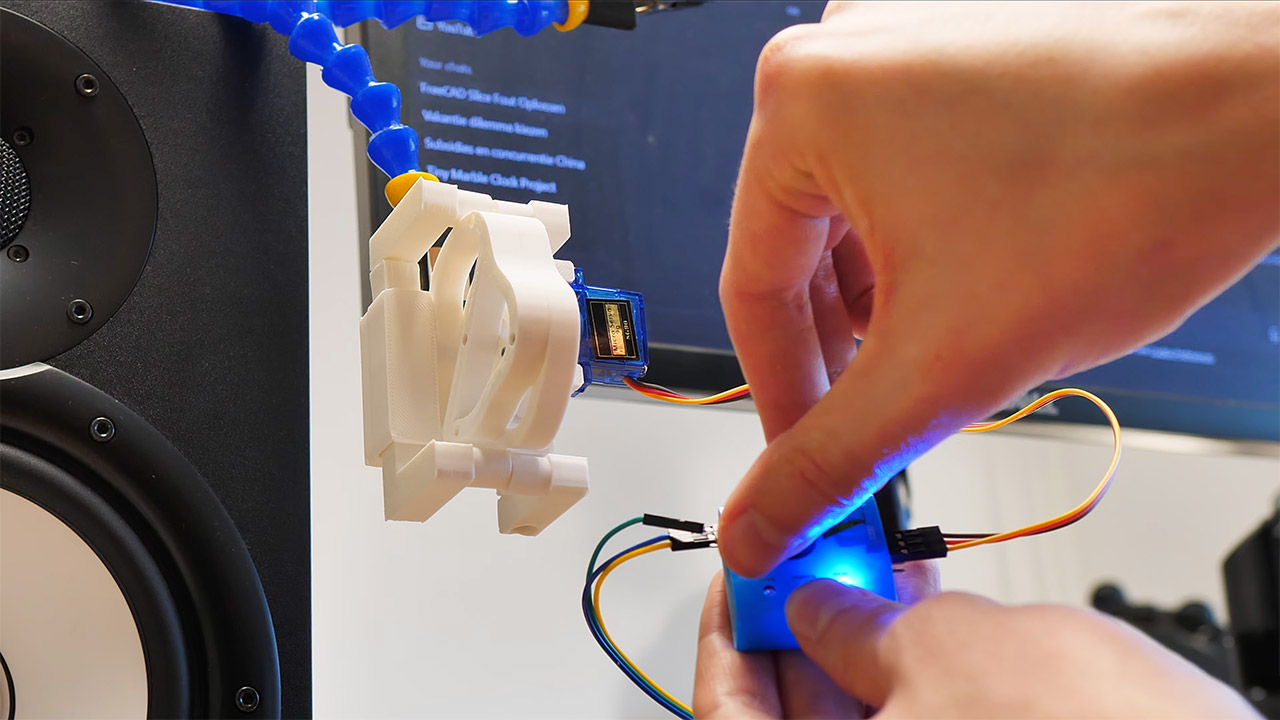

The SG90 micro servos do all the work, with three of them controlling the arm’s motion throughout three distinct axes and a fourth stepping in to carry out the pick-and-place. The arm ends with a magnet that lifts the marble from a matched provide location. Then there’s a fundamental piece that pushes the marble off when it reaches the right place on the grid. Jens averted springs and different pointless gear and as a substitute devised a inventive answer. A finely fashioned cam hooked up to a single servo generates the up-and-down movement required to seize the marble and deposit it into place. He actually found out the best way to make it work with cheap components.

The marbles perform as particular person pixels, and when the time adjustments, the system determines which of them so as to add and which to take away. It’s all managed by a microprocessor, which has a desk of pre-programmed directions for resolving any minor faults with the servos or one thing referred to as hysteresis. Often, the arm will block the show for a single second throughout a maneuver, however this isn’t a serious concern.

One of many essential benefits is that it’s decently quiet. Conventional marble clocks continuously fill the air with the sound of balls clattering down ramps. This one merely goes “whir whir,” with the occasional quiet click on. So now you can place it in your desk with out it being a trouble. This marble clock is sufficiently small to suit on the aspect of your keyboard and shows the time in an entire new means.
