One Lemming Beats Gravity, Simply in Time for 35 Years

Rob Smith seemed on the calendar final month, noting that February 14th marks 35 years since Lemmings dumped gamers into ludicrous puzzles on the Amiga. Inexperienced-haired creatures marched ahead, oblivious to the hazards forward until you assigned them duties comparable to constructing bridges or popping parachutes. Smith solely needed to supply an homage that caught one particular second: the floater. That’s the little lemming that pops an umbrella and glides to security in a single piece. He created one that actually floats, supported by magnets that pull upwards from above.

Smith initially tried to perform this utilizing off-the-shelf kits, ordering two magnetic levitation setups from AliExpress, one a extra primary configuration in a neat field and the opposite a extra hefty affair with a large coil and a severe energy provide. Meeting required persistence and a soldering iron. He pieced collectively the electronics, taking part in with potentiometers and making an attempt to draw little magnets into the air. The bigger package was presupposed to be able to lifting as much as 200 grams, however stability proved difficult because the magnets wobbled and crashed, and the sensors cracked on impression. Each of them had been too unstable for his 3D-printed lemming, so he tossed them.

Smith then moved on to customized work, beginning with a sketch of a circuit based mostly on an Arduino Nano and creating it from scratch. A MOSFET switched energy to the coil, a Corridor impact sensor tracked the situation of the lemming’s magnet, and RGB LEDs supplied some glow. He had additionally added a DFPlayer Mini module to play sport sounds and an 80-degree thermostat to forestall the coil from overheating. He despatched the design off to PCBWay to get some boards made up, and once they arrived, it was only a matter of soldering all of them collectively. Soldering took up the higher a part of a day, however he did at the least get to stay some foam across the sensor to cushion it towards any rogue crashes throughout testing.

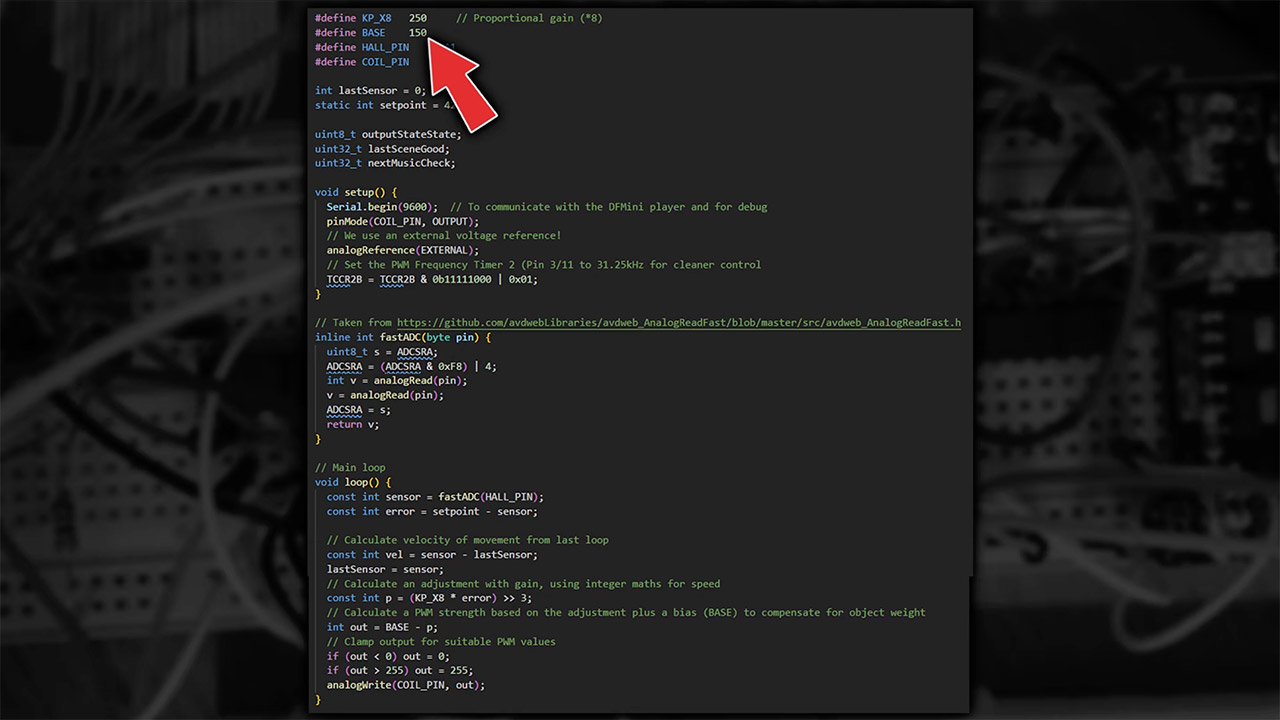

Then got here the code, and issues actually started to come back collectively. Pulse-width modulation gave the coil a slight pull, the sensor supplied information on the magnet’s place, and a suggestions loop ensured that every little thing remained regular. Achieve accelerated the response time, the midpoint regulated the hover peak, and a base offset counteracted gravity.He additionally added a 2.5-volt reference to enhance the outcomes. Add the code, make a couple of modifications, and repeat the method. Finally, the take a look at weights had been hovering properly at 40 milliamps, and he was ready so as to add some audio triggers: “Let’s Go!” when the lemming leaped into motion, a soundtrack when it detected the umbrella, a splash when it dropped, and a scream when it slammed the bottom.

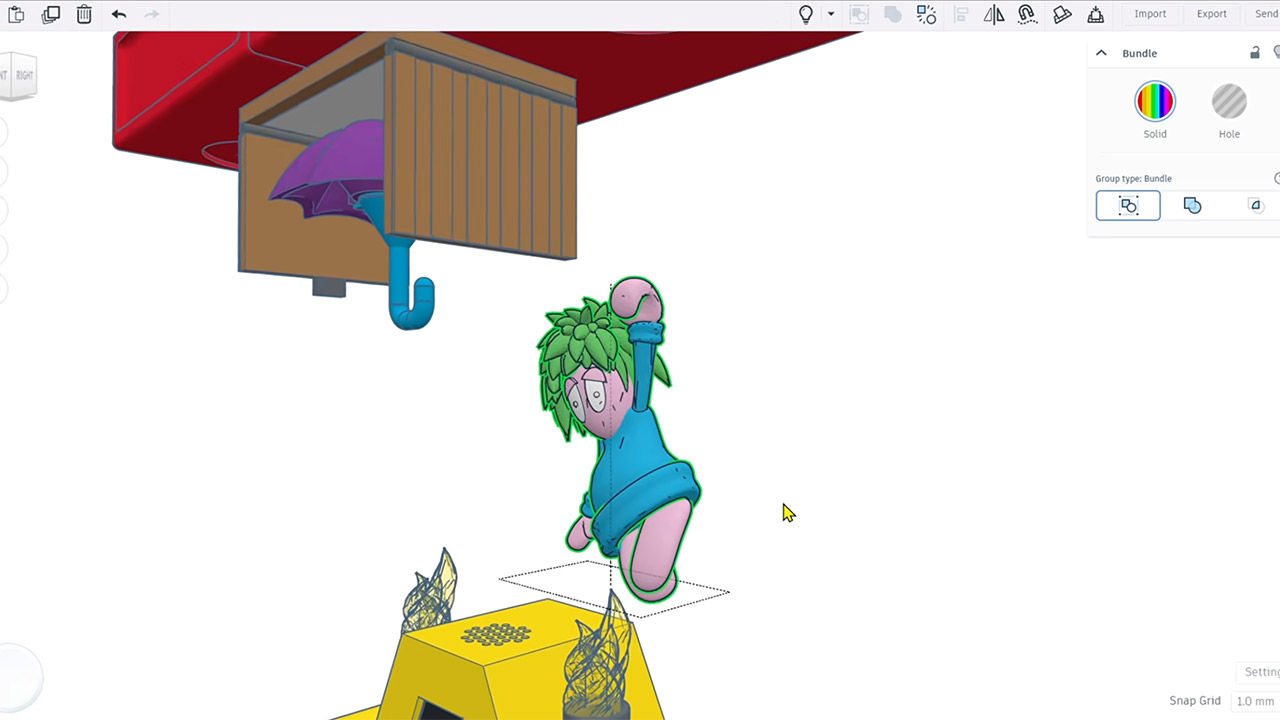

The following step was to design the situation, with Blender dealing with the columns, trapdoor, and exit signal. Ifu Sharuwan had supplied the lemming mannequin, which Smith disassembled into particular person sections for easy portray: hair, legs, physique, and head. Seven neodymium magnets packed within the umbrella had been important, since he wanted to get the polarity good. The tiny ones contained in the trapdoor had been supposed to power the lemming to face ahead. He additionally managed to cover the cords with wire channels and soften the exit lights utilizing a diffuser. Prints took a very long time as a result of he was altering colours row by row, however as soon as accomplished, a contact of glue held the parts collectively and a layer of felt on the bottom served to cushion the landings.
